Is Rigid PVC suitable for electrical applications?

Yes. Rigid PVC provides reliable dielectric strength, high resistivity, and stable insulating performance for low- and medium-voltage assemblies. It is commonly used for covers, guards, segregation plates, and non-load-bearing electrical components.

What electrical applications is PVC best suited for?

PVC is ideal for touch-safe covers, terminal guards, shrouds, separation plates, and light-duty insulating panels inside switchboards, control cabinets, pump rooms, and machinery housings.

What electrical applications should PVC NOT be used for?

PVC is unsuitable for high-temperature areas, high-load components, structural switchboard parts, busbar supports, arc-fault containment, and heavy-duty insulators. Thermoset materials such as GPO-3, FR4, FR5, phenolic paper, and glass composites must be used instead.

Can PVC be used inside AS/NZS 61439 switchboard assemblies?

Yes, for covers, shrouds, segregation pieces, and barriers where no structural or thermal load exists. It must be used within its thermal limits and cannot replace structural or high-temperature thermoset components required for type-tested assemblies.

Does PVC maintain electrical performance in humid or wet environments?

Yes. PVC is non - hygroscopic and absorbs virtually no moisture. Its electrical properties remain stable in humid, wash-down, and condensation-prone environments.

How heat-resistant is rigid PVC in electrical applications?

Standard rigid PVC is suitable for continuous service up to ~60°C. It softens around 75–85°C. It must not be used near bus bars, coils, braking resistors, or any components generating elevated heat.

Does colour affect the electrical properties of PVC?

No. Clear, white opal, and grey PVC generally share the same dielectric performance. Colour affects UV resistance, not insulation capability.

Is PVC self-extinguishing?

Yes. Rigid PVC self-extinguishes once the flame source is removed. For critical electrical applications requiring certification, UL 94 V-0 grades can be sourced by special order.

Can PVC be used outdoors or exposed to sunlight?

Standard PVC is best for indoor use. Long-term UV exposure causes chalking and discoloration. UV-stabilised outdoor grades can be supplied on request.

Is PVC easy to machine for custom electrical components?

Yes. PVC machines cleanly: drilling, turning, sawing, and CNC routing all produce accurate results. It offers predictable chip formation and low tool wear.

Can PVC be bonded or welded?

Yes. PVC bonds well with suitable solvent cements and can be PVC-welded using correct temperatures and filler rod. Adhesive bonding is also effective for light-duty assemblies.

How chemically resistant is PVC in electrical environments?

PVC resists water, detergents, salts, dilute acids and alkalis, making it suitable for pump rooms, processing plants, and damp industrial areas. It is not resistant to strong solvents, ketones, or oxidizing chemicals.

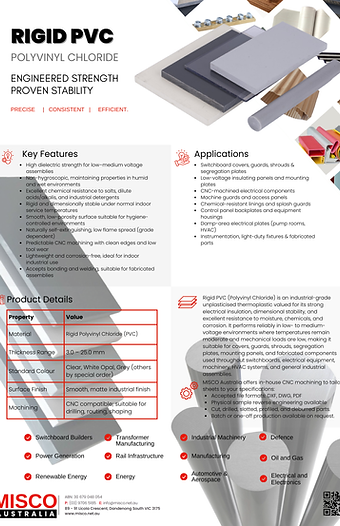

RIGID PVC

Rigid PVC (Polyvinyl Chloride) is a proven, cost-effective engineering thermoplastic used extensively across electrical, industrial, and mechanical applications. It provides a strong combination of electrical insulation, dimensional stability, moisture resistance, and chemical durability, making it a dependable material for environments where consistent performance is required without the expense of higher-end engineering plastics or thermoset composites.

PVC maintains its rigidity, impact strength, and insulating properties in typical indoor and light industrial service conditions. It performs well in areas exposed to humidity, water, mild chemicals, and cleaning agents, and offers a smooth, non-porous surface that is easy to machine, fabricate, and clean. This makes it suitable for panels, covers, guards, separators, spacers, light-duty structural blocks, and fabricated components used in switchboards, industrial equipment, and general manufacturing.

SPECIFICATIONS

Compliance

IEC 60664 – Insulation coordination for equipment
IEC 60243 – Electric strength of insulating materials
IEC 60093 – Volume and surface resistivity tests
AS/NZS 3000 – Wiring Rules (material suitability in low-voltage assemblies)
AS/NZS 61439 – Switch gear and control gear assemblies (material performance relevance)
ISO 527 – Tensile performance
ISO 178 – Flexural properties
ISO 179 / ISO 180 – Impact tests
ISO 306 – Vicat softening temperature
ISO 1183 – Density
UL 94 – Flammability
ISO 4589 – Oxygen index
ISO 7391 – PVC-U chemical resistance
EN 602 – Rigid PVC sheet reference standard
ISO 472 – Plastics terminology
ISO 9001 certified manufacturing
ISO 14001 and ISO 45001 (supplier dependent)
Lead-free and heavy-metal-free stabiliser systems
Modern non-cadmium formulation
RoHS compliant
REACH compliant
SVHC free (grade dependent)
Ozone and moisture resistant
UL 94 V-0 / V-2 grades available by special order

Product Form

Sheets
Rod
Tubes and Pipes
CNC Machined Components
Fabricated Assemblies (light-duty)

Standard Colours

Clear
White
Opal
Grey
Other colours are available by special order

Sheet Sizes

Standard: 1220 × 2440 mm (standard)
Custom cut sizes available on request

Thickness Range

Typically available from 3.0mm - 12mm
Additional thicknesses may be available by special order

MECHANICAL PROPERTIES

ELECTRICAL PROPERTIES

THERMAL PROPERTIES

Excellent Electrical Insulation
Stable dielectric performance for covers, barriers, guards, and low- to medium-voltage components.
High Chemical and Moisture Resistance
Performs reliably in damp, corrosive, and wash-down environments where metals and some plastics fail.
Strong Mechanical Stability
Good rigidity, impact resistance, and dimensional stability for everyday industrial use.
Smooth, Non-Porous Surface
Easy to machine, clean, and maintain; ideal for hygienic, controlled, or indoor environments.
Reliable Machinability
Suitable for CNC routing, drilling, sawing, turning, and fabrication with predictable chip behavior.
Self-Extinguishing Material
Naturally fire-retardant compared with many standard thermoplastics; enhanced grades available.
Cost-Effective Engineering Plastic
Offers durable performance at a lower cost than engineering plastics or thermoset composites.
Non Hygroscopic
Does not absorb moisture, maintaining electrical and mechanical properties in humid conditions.
Versatile for Fabrication
Can be bonded, welded, or lightly thermoformed for custom assemblies.
Corrosion Free & Low Maintenance
Resistant to rust, rot, swelling, and chemical degradation.

Switchboards & Electrical Assemblies
Barriers, covers, shrouds, segregation panels, terminal covers, light-duty mounting plates.
Industrial Machinery & Automation
Guards, access panels, machine covers, inspection windows (clear grades), non-conductive spacers.
Mechanical Components
Light-duty wear plates, jigs, fixtures, prototype components, bushings, spacers, blocks.
Chemical & Processing Environments
Splash guards, chemical-resistant linings, ducting pieces, enclosure panels.
HVAC, Plumbing & Building Services
Air-handling panels, pump covers, non-corrosive brackets, protective housings.
Food, Packaging & Clean Facilities (grade dependent)
Cleanable panels, guards, separation plates, non-porous machine parts.
Water, Wastewater & Treatment Plants
Corrosion-resistant covers, inspection panels, instrument plates.
General Fabrication & Workshop Use
Custom panels, signage substrates, templates, spacers, light structural fabrications.
Transport, Vehicle & Equipment Panels
Interior panels, guards, battery isolator covers, electrical protection plates.
Laboratories & Testing Equipment
Non-conductive panels, bench components, splash guards, equipment housings.

Switchboard Manufacturing & Electrical Distribution
Barriers, covers, segregation plates, and non-conductive components.
Transformer, Motor & Generator Manufacturing / Rewinds
Light-duty insulation panels, terminal covers, spacers, mounting plates.
Industrial Machinery & Automation
Guards, machine covers, operator panels, prototype parts.
HVAC, Plumbing & Building Services
Air-handling panels, damp areas, corrosion-resistant covers, non-metallic components.
Water, Wastewater & Treatment Plants
Chemical-resistant covers, splash guards, control panel components.
Food, Packaging & Clean Facilities (grade-dependent)
Wash-down friendly panels, guards, machine covers.
Mining, Metals & Heavy Industrial Processing
Corrosion-resistant housings, protective plates, equipment guards.
Rail, Transport & Automotive
Interior panels, battery isolator covers, electrical protection pieces.
Construction & Infrastructure
Non-corrosive brackets, protective screens, building service panels.
Renewable Energy Systems & Inverters
Light-duty electrical panels and protective barriers.
Laboratories, Scientific & Test Equipment
Chemical-resistant panels, splash guards, non-conductive fixtures.
General Engineering & Fabrication
CNC machined custom parts, spacers, templates, industrial panels.

Strong Electrical Insulation Performance
Provides consistent dielectric strength, high resistivity, and stable insulating behavior across typical indoor operating conditions, making it suitable for covers, guards, and separation panels in electrical equipment.
Cost-Effective Engineering Material
Offers a dependable balance of mechanical, electrical, and chemical performance at a significantly lower cost than engineering plastics (nylon, acetal) and thermoset composites (FR4, phenolic).
Excellent Chemical and Moisture Resistance
Unaffected by water, humidity, and most common industrial chemicals, ensuring long service life in wash-down areas, damp environments, and processing zones.
Dimensionally Stable & Rigid
Maintains shape and rigidity under normal load conditions, providing reliable performance for panels, guards, fixtures, and fabricated components.
Smooth, Non Porous Surface
Resists dirt build-up and is easy to clean, making it suitable for environments requiring hygiene, controlled contamination, or regular maintenance.
Reliable Machinability & Fabrication
Machines cleanly using standard CNC practices—drilling, routing, turning, sawing—allowing precise custom components with minimal post-processing.
Self Extinguishing Material Characteristics
PVC naturally extinguishes once the ignition source is removed, offering added safety benefits compared with many unmodified thermoplastics. Enhanced fire-rated grades are available for demanding installations.
Corrosion Free Performance
PVC does not rust, oxidise, or degrade in humid or corrosive environments, making it a dependable alternative to metals in many applications.
Low Maintenance & Long Service Life
Requires minimal upkeep and maintains performance without warping, swelling, or absorbing moisture.
Versatile Fabrication Options
Can be bonded, welded, lightly thermoformed, and mechanically fastened, supporting a wide variety of customised industrial solutions.
Lightweight & Easy to Handle
Reduces handling effort during fabrication, installation, and on-site work, improving productivity and safety.
Consistent Availability & Compatibility
Widely used across multiple industries, with predictable supply chains and compatibility with standard fabrication equipment.

Downloads

All supporting documents for this material are available for download, including the latest technical data sheet, safety data sheet, machining and processing guidance, compliance information, and relevant product brochures.

These controlled documents provide specifications, performance data, handling requirements, and application notes to assist with design, material selection, and fabrication.

Each file is maintained by MISCO Australia to ensure current, reliable information for switchboard, transformer, industrial, and defence grade applications.
